Visual servo dispensing machine
  • Visual servo dispensing machine
  • Visual servo dispensing machine

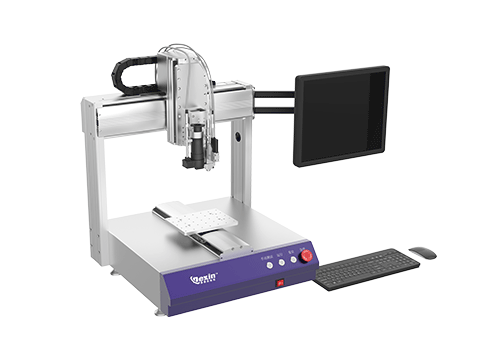

DEX-430SD Visual servo dispensing machine

The visual servo dispensing machine is suitable for various fluids and provides high-speed, high-precision, and highly flexible dispensing processes. It can be widely used in fields such as electronics, semiconductor packaging, solid-state lighting, new energy, and life sciences. Tel:13652304215.

Hotline:13652304215

Product details


visionServo dispensing machine

model: DEX-430SD

Processing range: 400 * 300 * 100mm

Maximum speed: 800mm/sec (XY)/200mm/sec (z)

Operating System: Windows 7

Transmission mode: servo motor/grinding screw

Working voltage: AC220V/50-60HZ/1.5KW

Dimensions: 966 * 601 * 744mm

Working environment: temperature 10-40 ℃/humidity 20-90% no conditioning

Glue dispensing accuracy: ± 2%

Glue line width: 0.3-0.6mm (different line widths can be achieved according to different nozzle configurations)


Introduction to non-contact jet dispensing valve:

Non contact jet dispensing valve, suitable for various fluids, provides high-speed, high-precision, and highly flexible dispensing processes, and can be widely used in fields such as electronics, semiconductor packaging, solid-state lighting, new energy, and life sciences.


Features and advantages:

1. High speed dispensing does not require the Z-axis movement necessary for traditional needle dispensing processes, and the dispensing speed is more than three times that of needle dispensing

2. The minimum dispensing volume for high-precision dispensing can reach 5 nanoliters, and the minimum dispensing point diameter can be controlled to 0.2mm, with consistency that traditional needle dispensing cannot achieve.

3. High flexibility is insensitive to dispensing height, which can avoid adverse effects caused by needle collision with workpieces; The extremely small amount of glue allows the DEX-430SD to operate in a more compact space, completing dispensing processes that needle dispensing cannot achieve.

4. Low maintenance, high lifespan, advanced structural design, simple and easy daily cleaning and maintenance. The most advanced nano wear-resistant material accessories have a lifespan more than 20 times that of ordinary materials.


DEX-400SD Performance and Advantages:

All three axes are equipped with AC servo motors and precision ball grinding screws, ensuring high speed, high precision, and high consistency of motion

The main control system adopts a motion control card and is programmed using a computer

The programming interface is simple and friendly, and commonly used graphics (circles, ellipses, rectangles, etc.) do not require teaching and can be directly called by inputting parameters

Support CAD graphic import and trajectory preview function

The device adopts a modular structural design for easy maintenance

The semi enclosed shell design not only facilitates operation but also improves the cleanliness of the dispensing environment

Strong load-bearing capacity and large internal space of the equipment

High speed precision dispensing operation. The fully enclosed structural design, combined with the active extension of the Y-axis loading platform and the automatic lifting of the glass door, achieves a silent effect while facilitating the retrieval and placement of products
